Ulticlip APH Clip

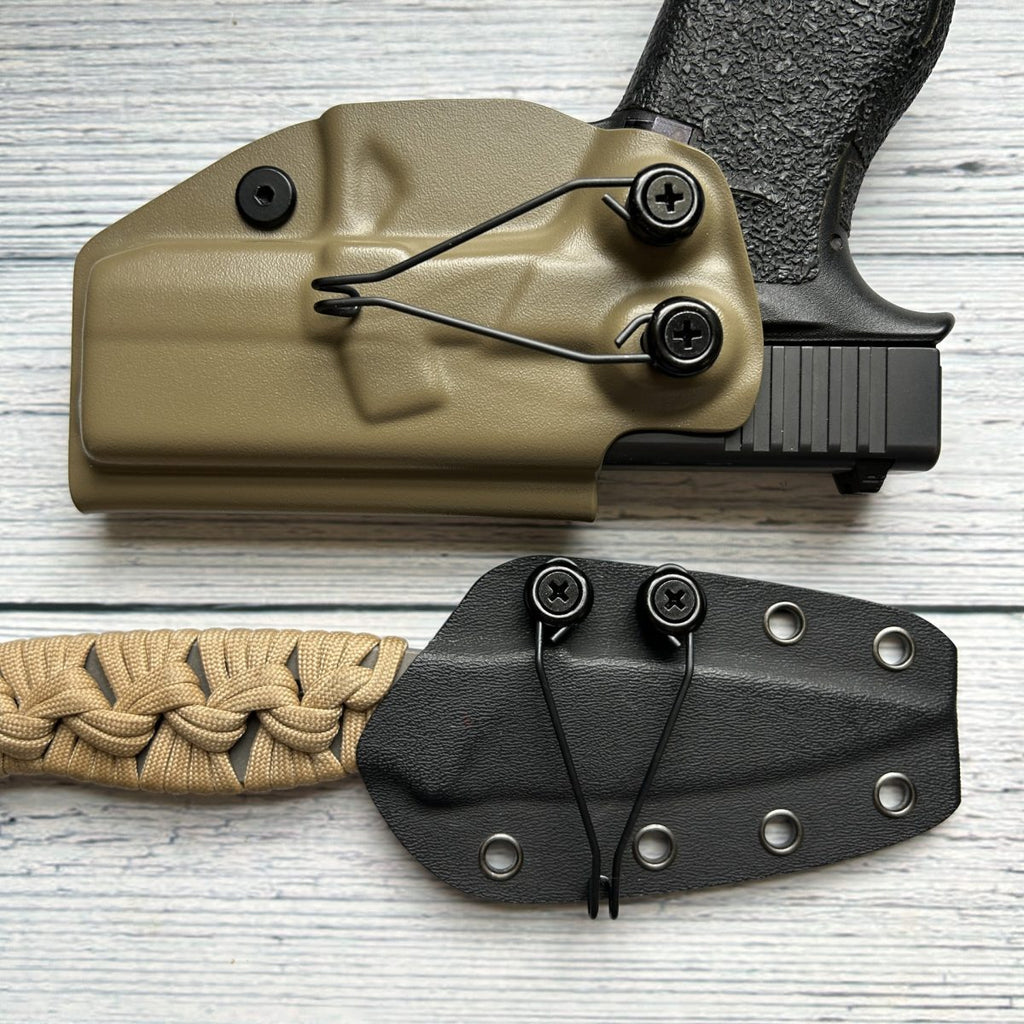

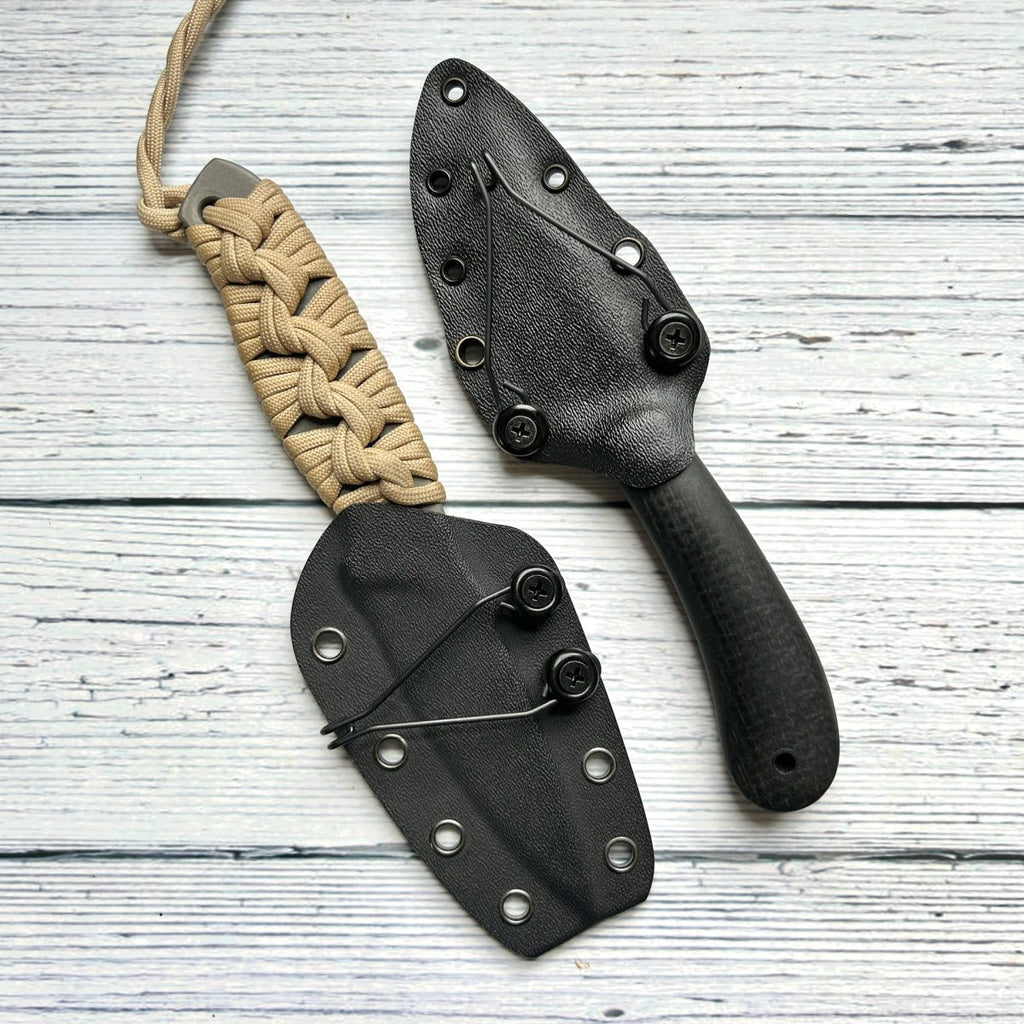

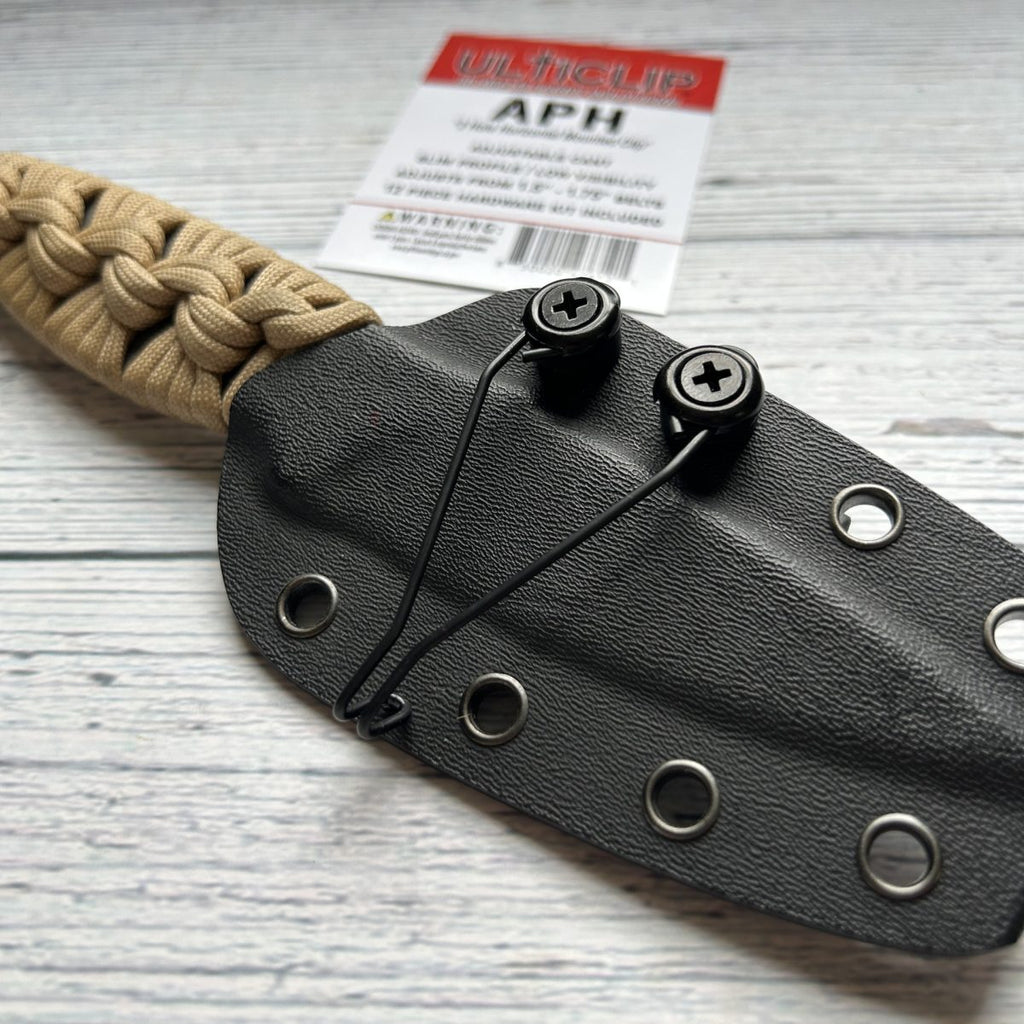

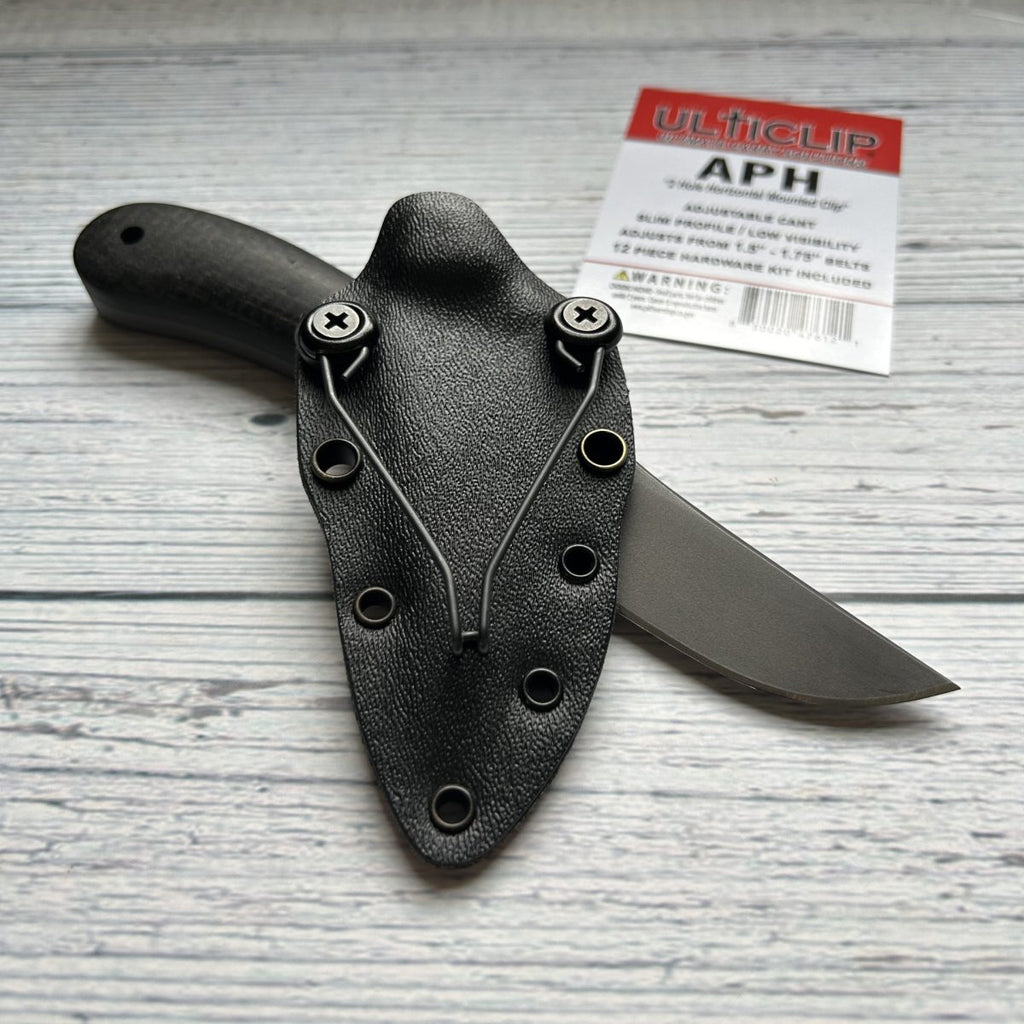

The APH (All Purpose Horizontal) Clip is a 2 hole, horizontally mounted wire clip that excels on a variety of applications. This clip easily replaces standard FOMI (Fold Over Mold Injected) clips. Thanks to the .30″ slotted mounting holes, the APH offers adjustable cant and accommodates belt widths of 1.5″ to 1.75″. The APH can also be used to create horizontal/scout and vertical mounting options for knife sheaths.

Specifications

• • Military Grade Black Oxide Finish
  • Spring Steel Wire
  • Minimum Profile, Maximum Concealment
  • Size: * See APH Clip mounting template
  • Weight: .54 oz.
  • The APH Clip is patent pending and proudly made in the USA.

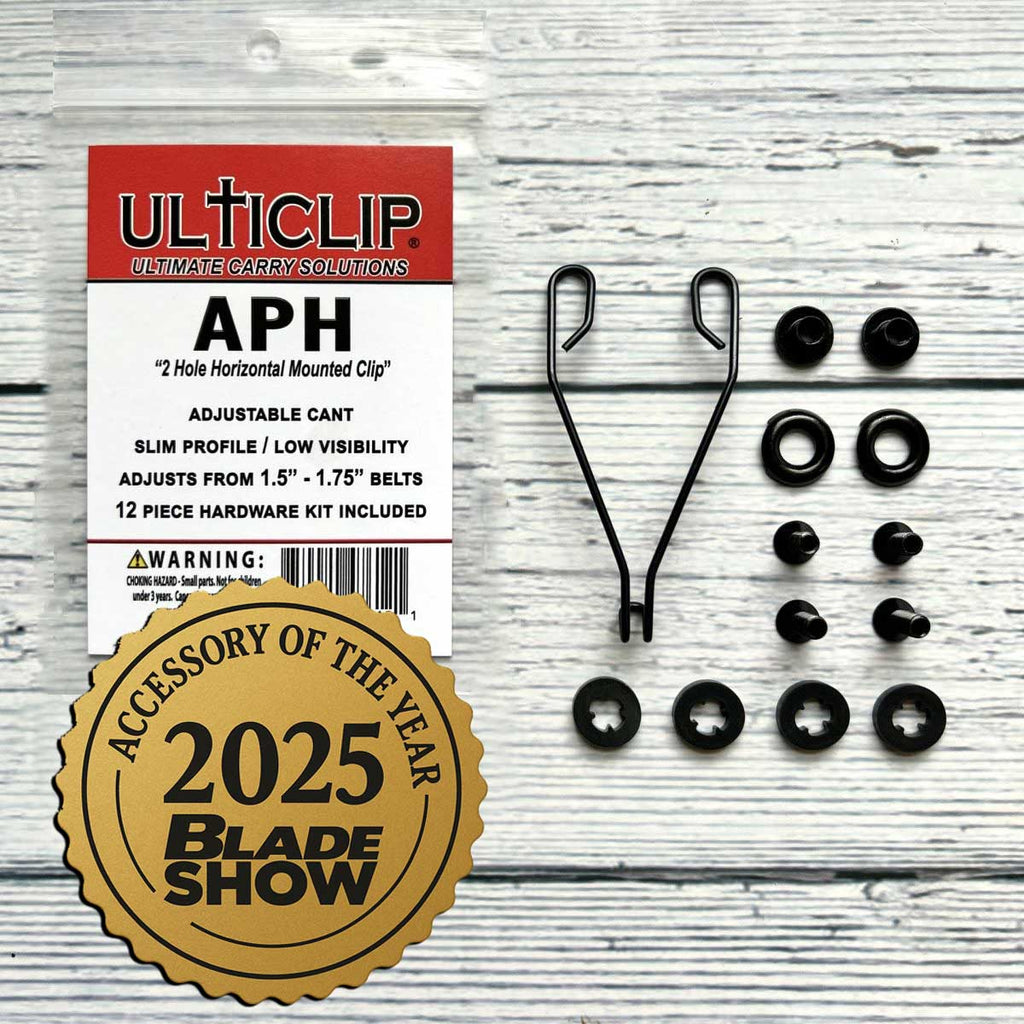

• 12 piece mounting kit includes:
  • 2qty. .50″ Flat, Phillips Head Screws, 2qty. .375″ Flat, Phillips Head Screws, 2qty. Posts (.15″ long), 4qty. Rubber Washers (.10″ thick”), 2qty. Proprietary Slotted Finishing Washers.
  • Black Zinc Plating
  • Open & Slotted Post
  • .30″ – Screw Head Diameter
  • .53″ Finishing Washer Diameter
  • .40″ – Post Head Diameter
  • .20″ Post Barrel Diameter
  • 8-32 Threading on All Screws & Posts
